Gettle Incorporated’s Electrical, Engineering/Design and Fire/Security Divisions collaborated on this LEED certified project.

Gettle Incorporated’s Electrical, Engineering/Design and Fire/Security Divisions collaborated on this LEED certified project using BIM/Revit for coordination of a new 230,000 square-foot manufacturing facility.

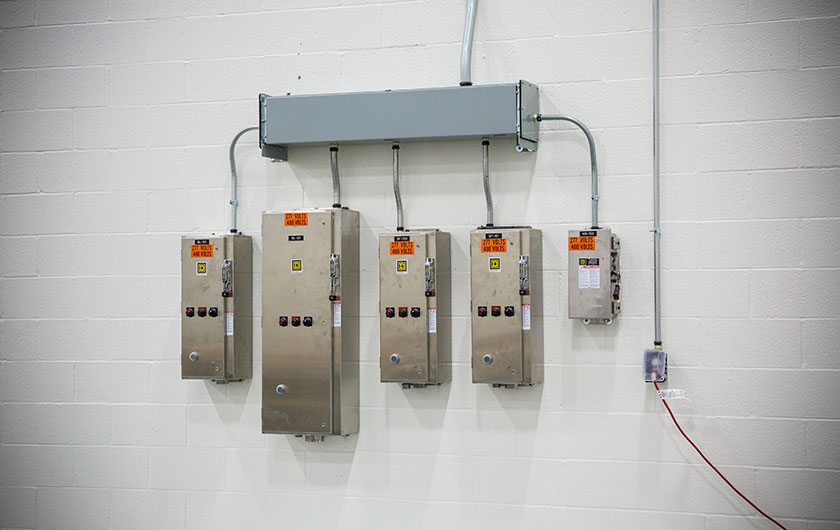

• 5,000 amp BG&E Secondary Metered Electrical Service
• 1,600 amp Feeder for Future Mill Equipment
• 1,000 amp Panel for the ETO Area Equipment
• 600 amp Branch Panelboard for the Packaging Area Equipment
• 600 amp Battery Charging Panel
• (3) 600 amp MCC Feeders for Blending Tower Equipment
• (3) 400 amp Branch Panel Boards
• 250 amp Branch Panel for Pack & Label Equipment
• 225 amp UPS Feeder
• (2) 75kva Transformers
• (3) 45kva Transformers
• (4) 30 kva Transformers
• (5) 200 amp Feeders for Roof Top Equipment
• (2) 75hp Air Compressor Feeds
• 20 hp Elevator Feeder
• (12) 100-200 amp Branch Panels

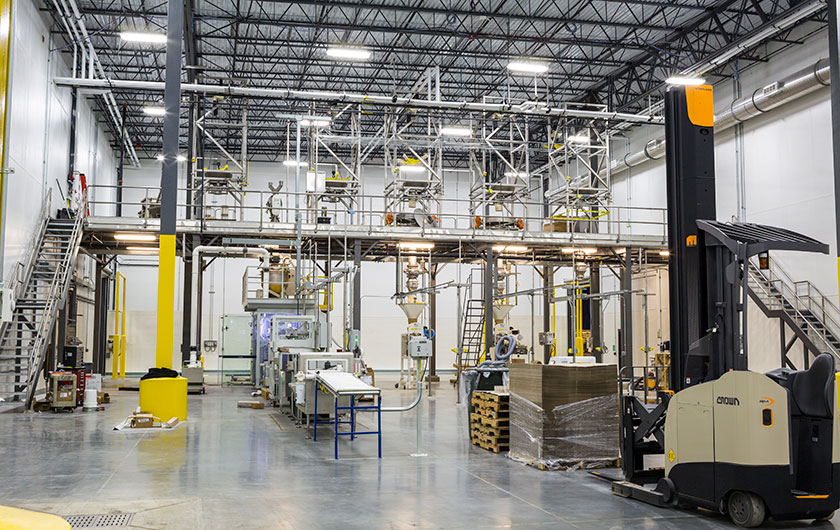

• Warehouse, Manufacturing, Blending Tower & Packaging Area
  Lighting

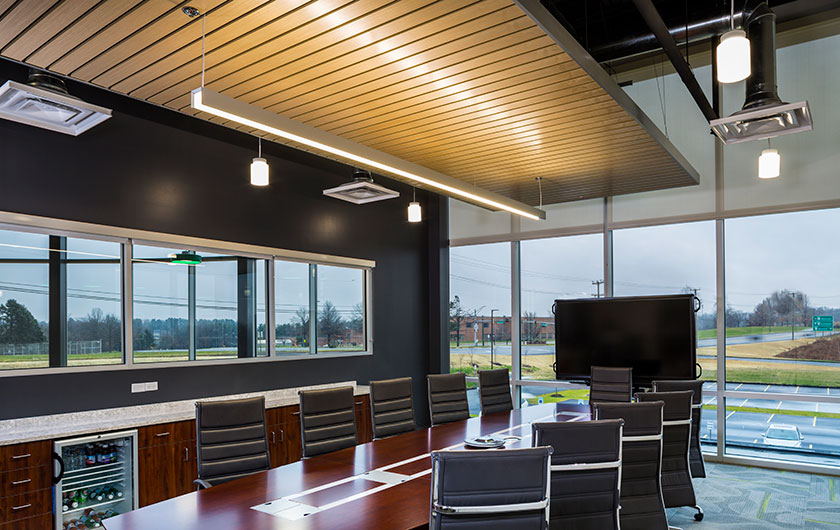

• Office Lighting; All LED throughout
• Wattstopper DLM Lighting Control with Day Light Harvesting
• (17) Exterior LED Site Lighting Poles
• Silent Knight Fire Alarm System
